CT052N

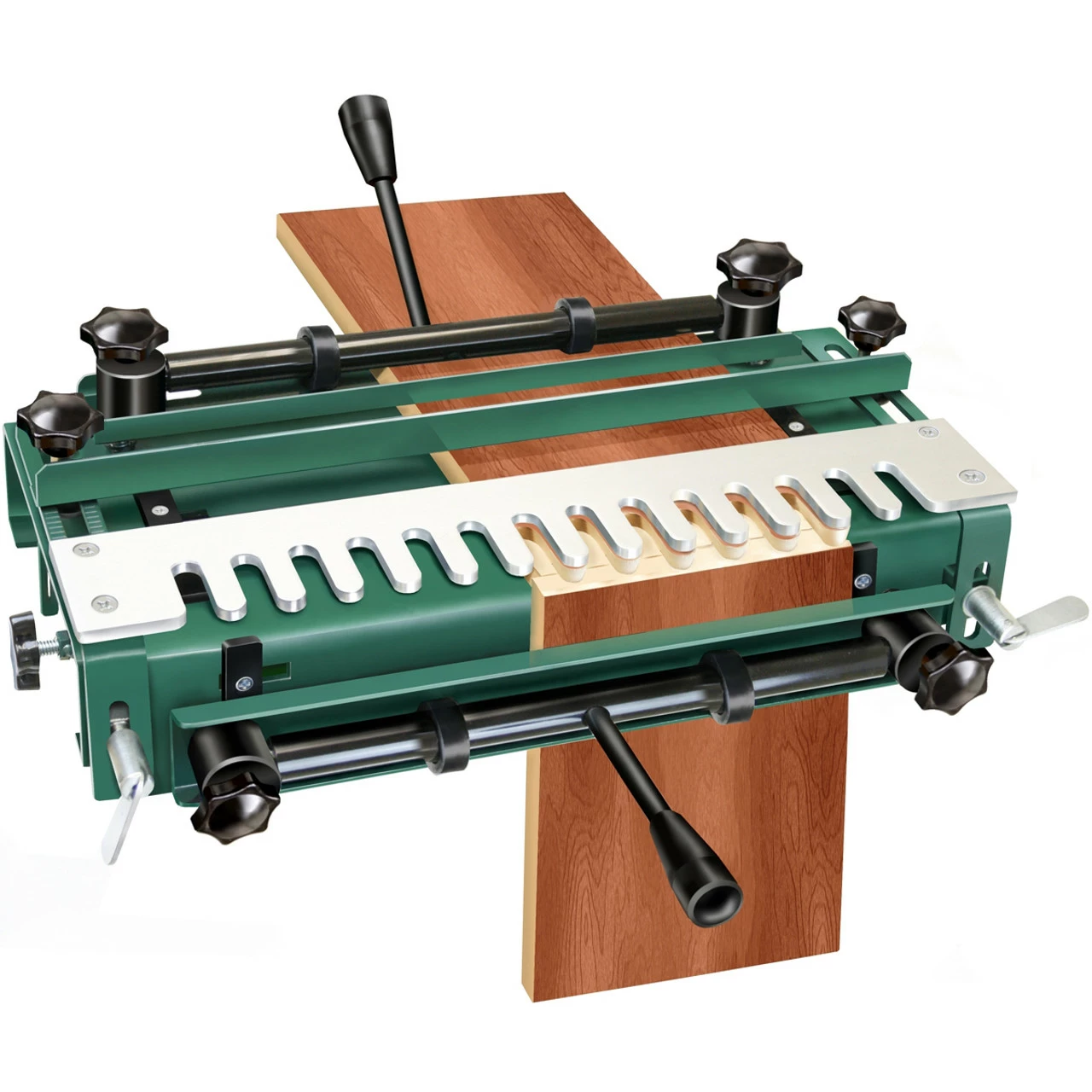

12″ Deluxe Dovetail Jig – CRAFTEX
The New and Improved Independent Template Height Adjustment feature on CT052N allows the user to adjust the template to the desired height independent of the fence. The CT052N features a solid and durable construction and is a perfect jig for making fast and accurate dovetail joints.
With this 12″ dovetail jig you can cut male and female dovetail jointsΒ simultaneously, and create perfectly matching dovetail joints.
SPECIFICATIONS:
Product Size: 15″ x 11″ x 6-3/4″
Side Stops Offset Capacity: Up to 1″ (25mm)
1/2″ Aluminum Comb is CNC Machined
General Construction: Heavy Forced Stamped Steel for Rigidity and Long Life
Comb Size: 1/2″ comb finger
Thickness Capacity: 12″ Wide and 5/16″ to 1-1/14″ Thick
Net Weight: 10 Kgs
Optional Kit
B755KIT optional kit contains the following (105127, B24211N, B2422)
NOTE: B755KIT is suitable for use with combs of CT052, CT052716 and CT052916,Β CT052516, CT154 and requires a 1/4″ cutter and a 5/16″ follow
