New 👍 DRILL PRESS HEIGHT GAUGE WIXEY 🤩

WR503

Drill Press Depth Gauge – Wixey

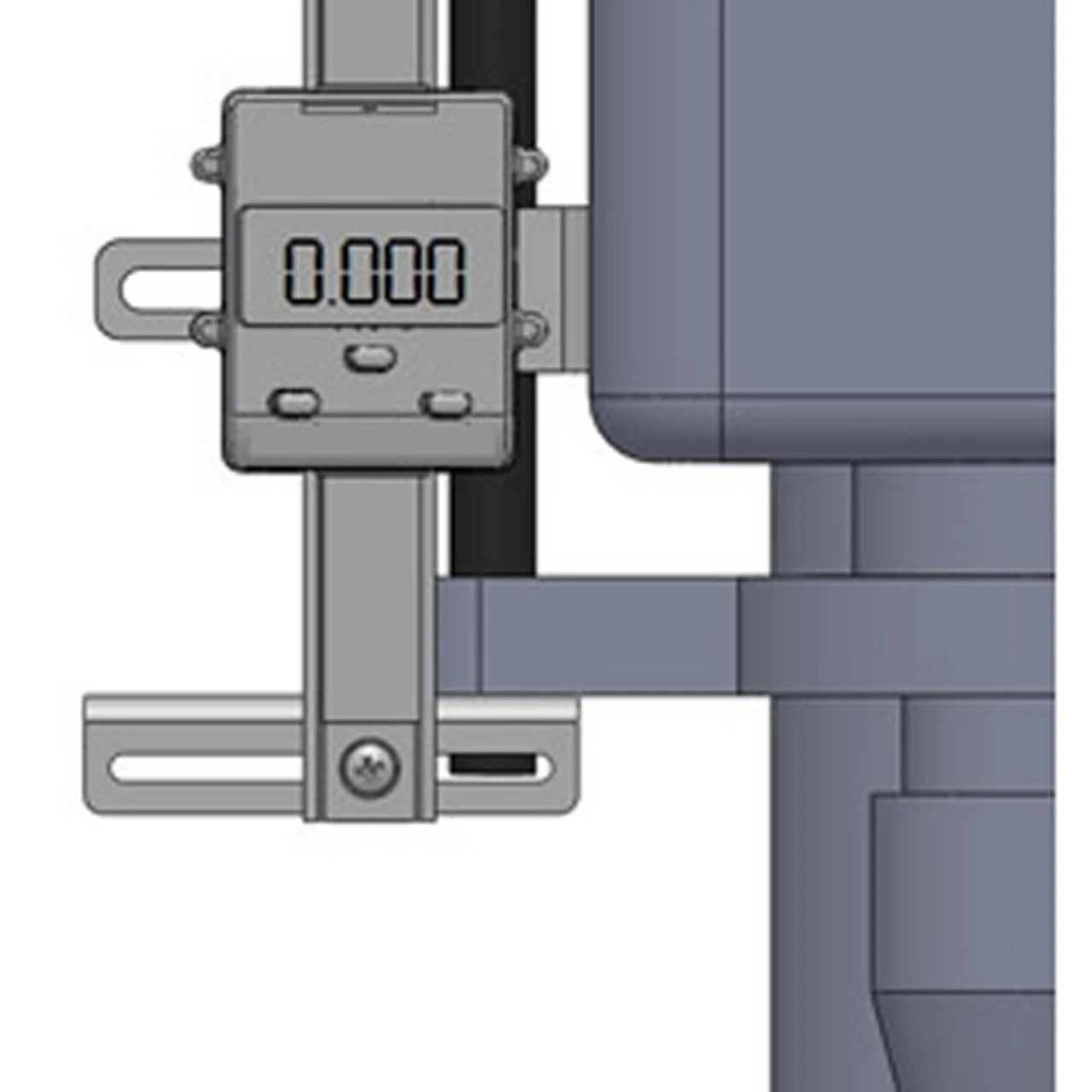

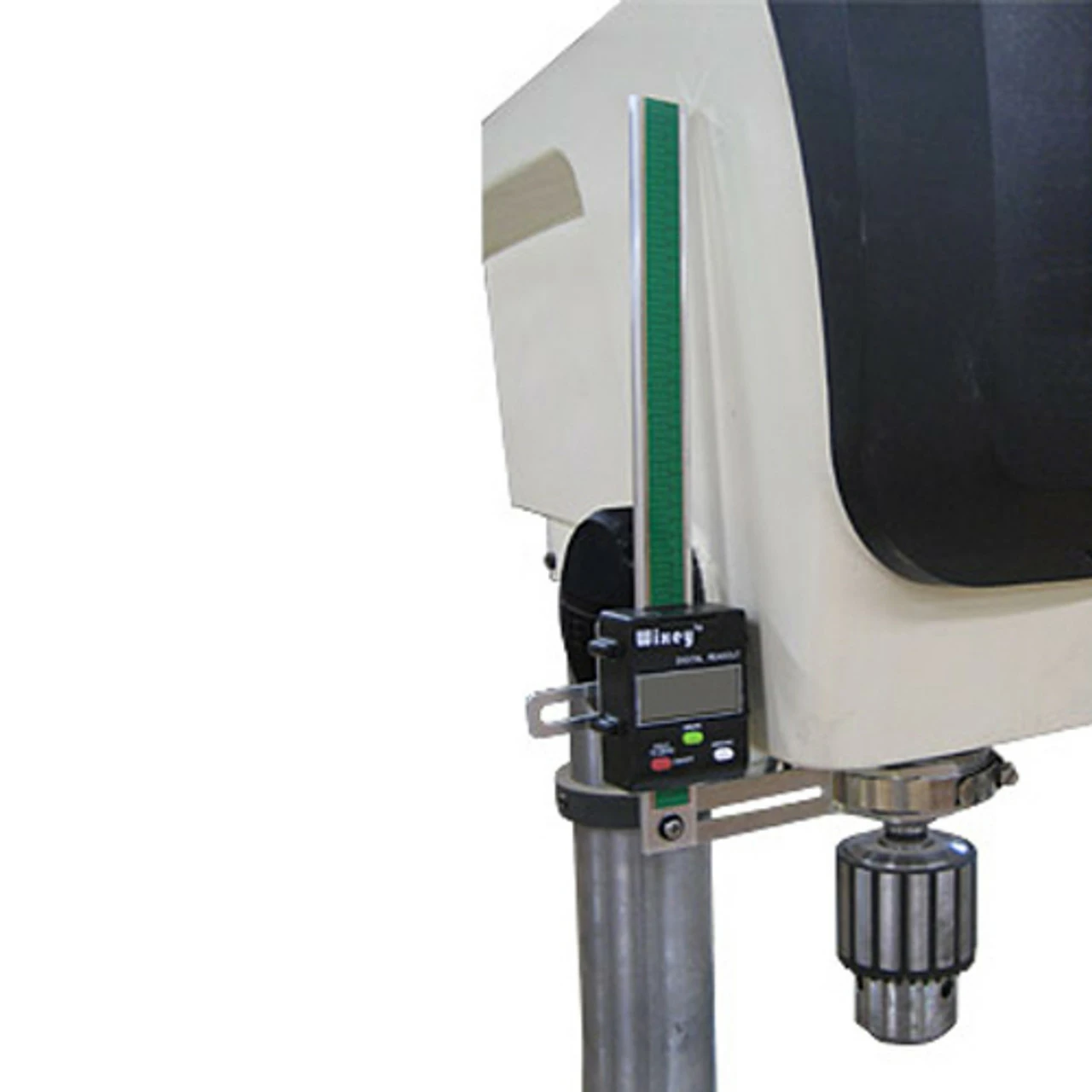

The Wixey WR503 Drill Press Depth Gauge mounts to any drill press. It can be attached to the existing depth stop rod or directly to the collar on the quill.

This device allows the user to quickly set the readout to read 0.00 where the drill bit first contacts the work piece and then measures the hole depth as the drill is lowered.



FEATURES

Thin and precise easy to adjust cross-hairs

Fits drill presses with quill travel up to 6.5″

Accurately measures drilling depth

Mounts to any drill press

Quick and easy to use

Displays in inches with fractions or millimetres



SPECIFICATIONS

Measuring Depth: 6.5″ (165cm)

Resolution

Decimal – .002″

Fraction – 1/32″

Metric – .05mm

Accuracy

Decimal: +/- .004″

Fraction: +/- 1/250″

Metric: +/- .10mm

Battery: 6 months life, Type CR2032

IN/MM

ON/OFF/ZERO

ABS/INC

Auto Shut Off
