Pocket Jig100 – MILESCRAFT

The PocketJig100 allows you to connect your work pieces in a quick and timely manner or do repairs around your house. Small, compact design allows you to do applications where a small jig is required. Built in board thickness locations for easy measurement and set-up of your work pieces, virtually eliminating the need for manual measurements. Includes everything you need to get started with your first pocket holes.

Board Thickness Settings

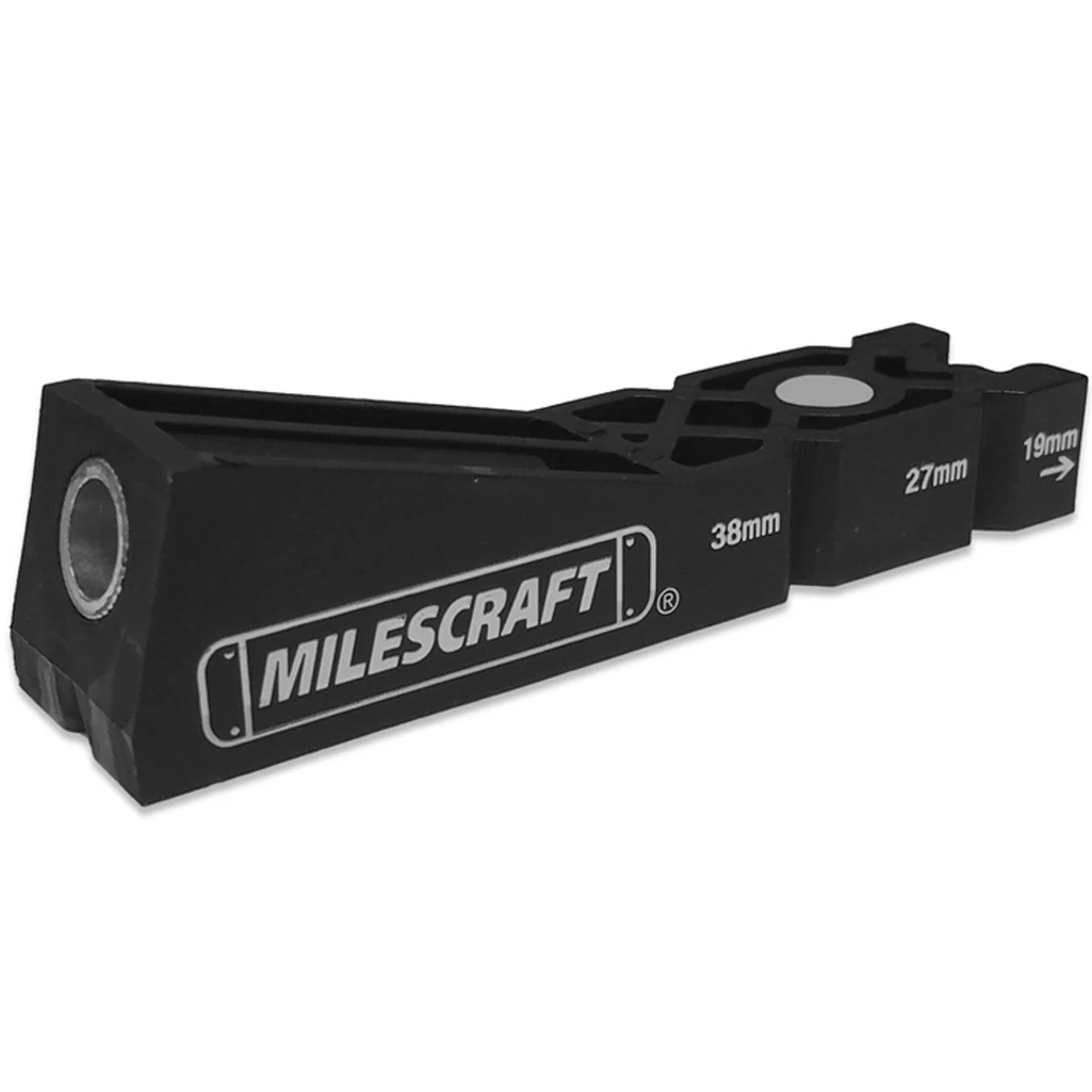

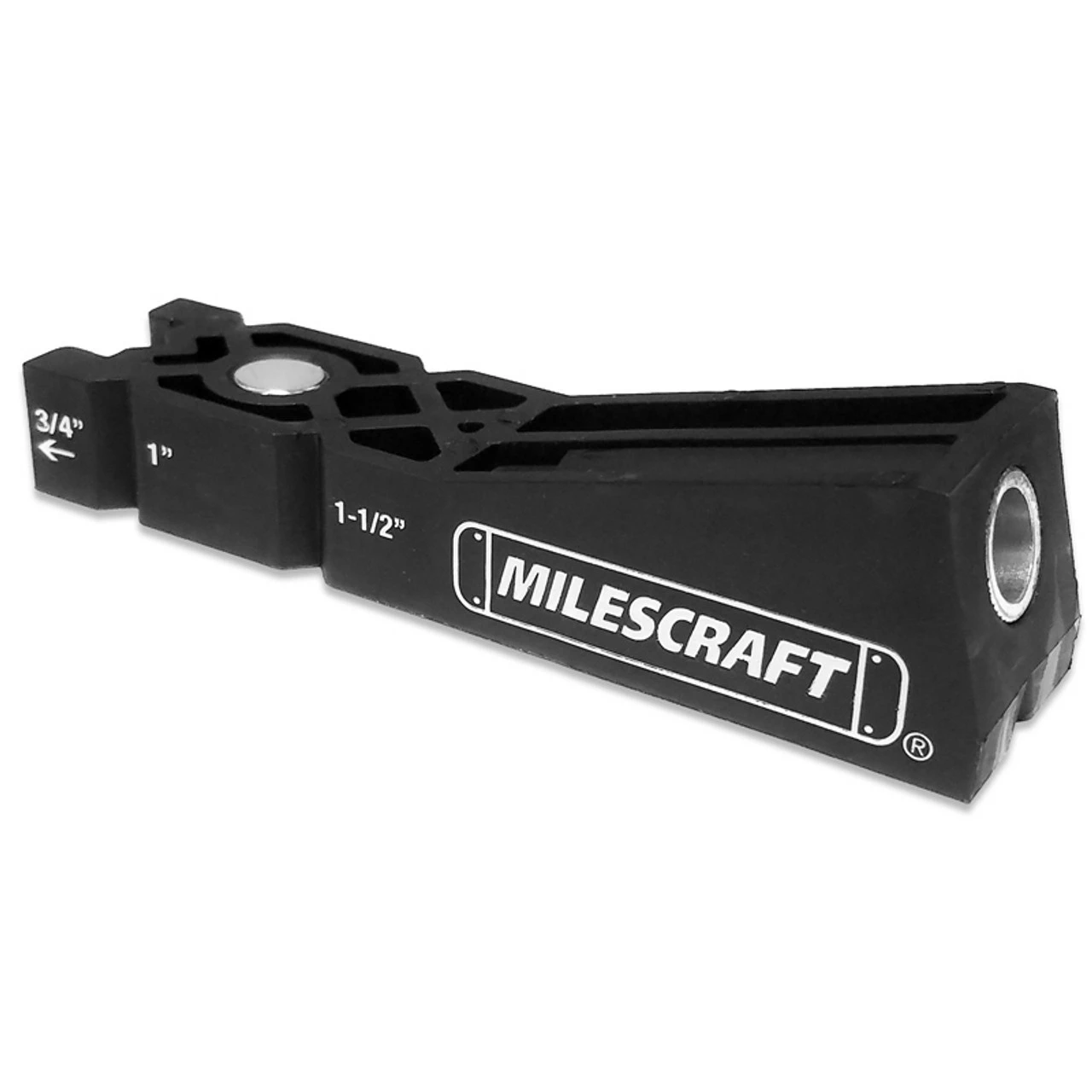

There are four common board thickness settings built into the jig: 1/2″, 3/4″ 1″ and 1-1/2″ (12, 19, 27, 38mm)
Easy reference marks to mark your board thickness and set your jig

Clamping Magnet

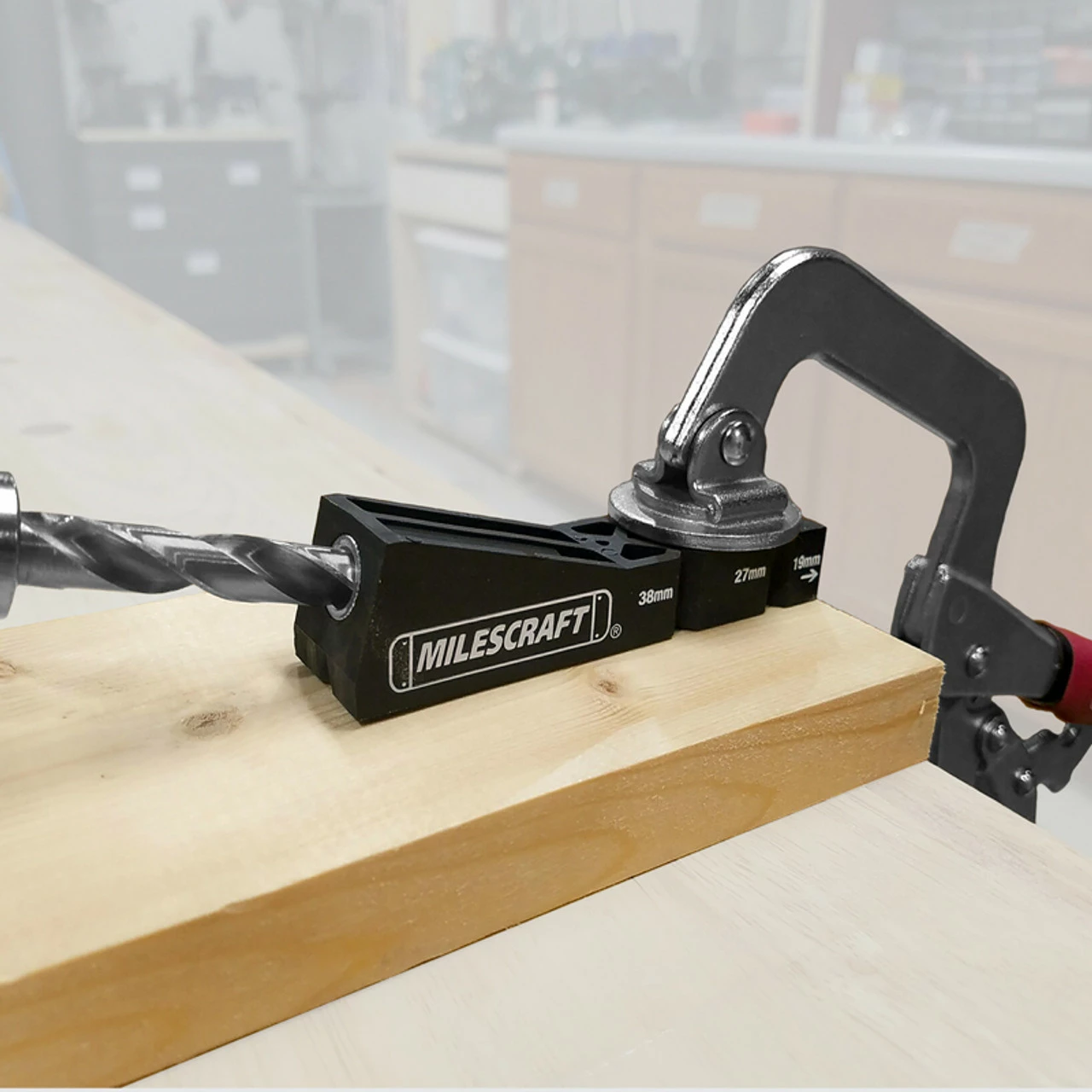

The PocketJig100 includes a clamping magnet to allow you to easily secure the jig to your work piece using any standard metal clamp.
For speed and accuracy, use the Milescraft 3″ Face Clamp

Designed to make repairs simple
No fence and the small design allows you to get into some of the smallest places to make repairs to many joints

Hardened Steel Drill Bushings
The bushings allow for precise pocket holes every time using theMilescraft PocketBit
Tight tolerances between the bushings and the drill bit, reduce tear-out and create a clean pocket hole on the first try

Quick Change Compatible
With the Milescraft Connector, you can change from drilling to driving in just seconds!

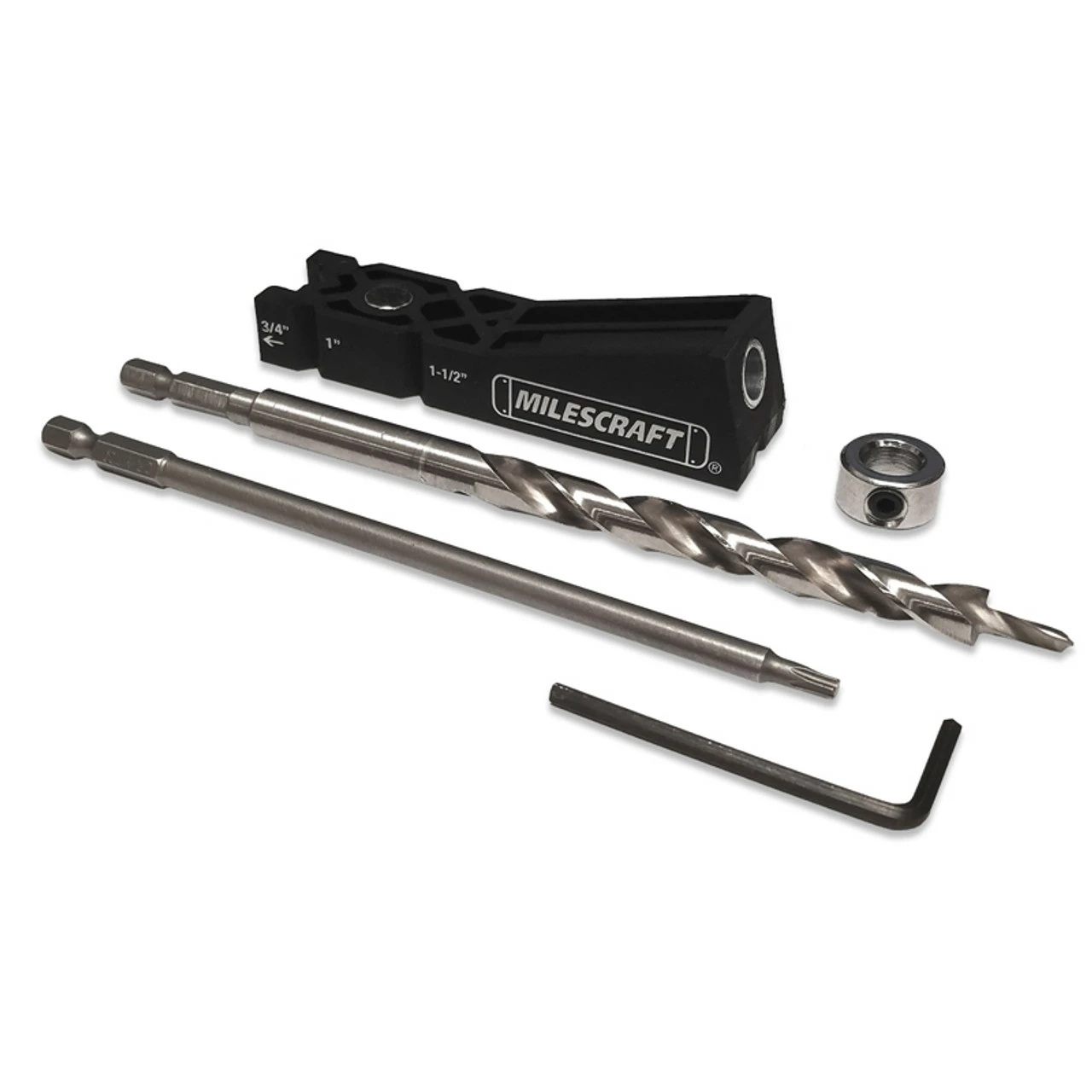

Includes: PocketJig100, 3/8″ (9.5mm) PocketBit, 3/8″ Stop Collar, 6″ Magnetic T20 Star Driver, Hex Key, Instruction Manual
Body Material: Reinforced Nylon
Clamping Method: Works with any Clamp
For use with: Wood Material from 1/2″ to 1.5″ Thick
Driver Style: T20
Weight: 0.45 lbs
